Water Cooled Room Temperature Vortex Bench Type HX(T)-30W

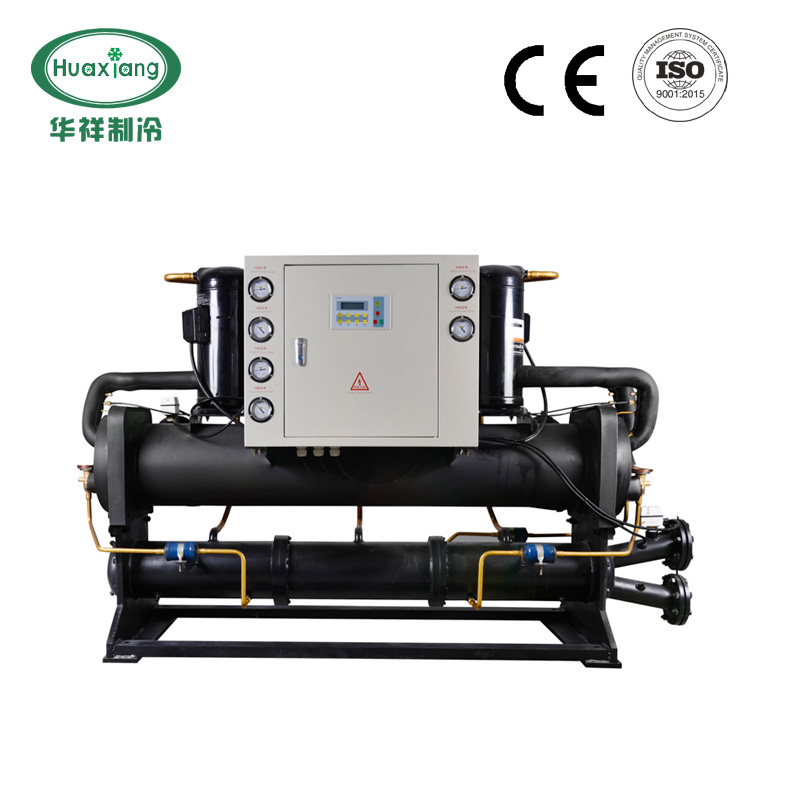

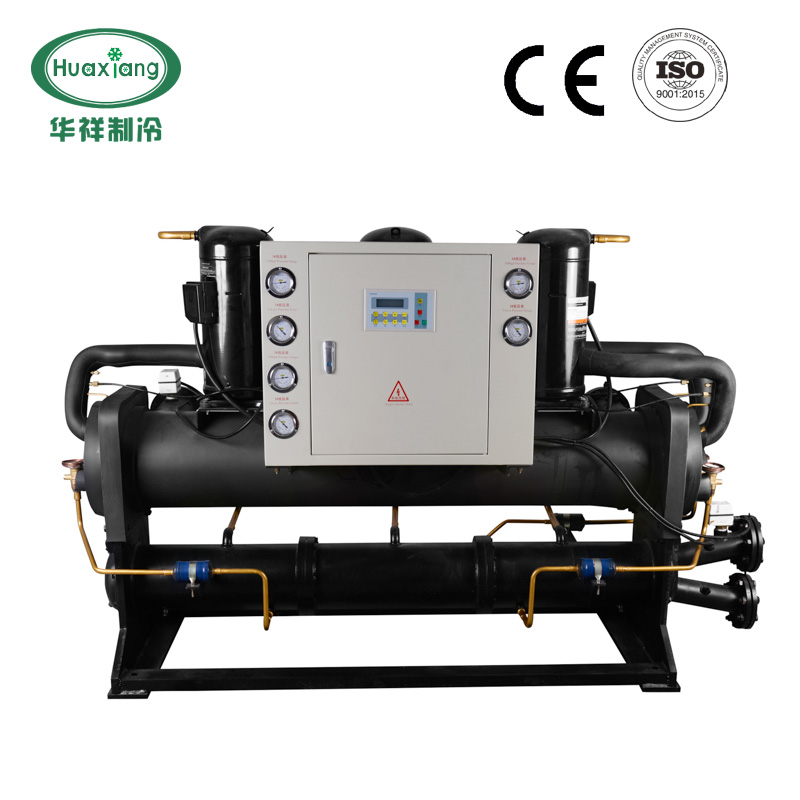

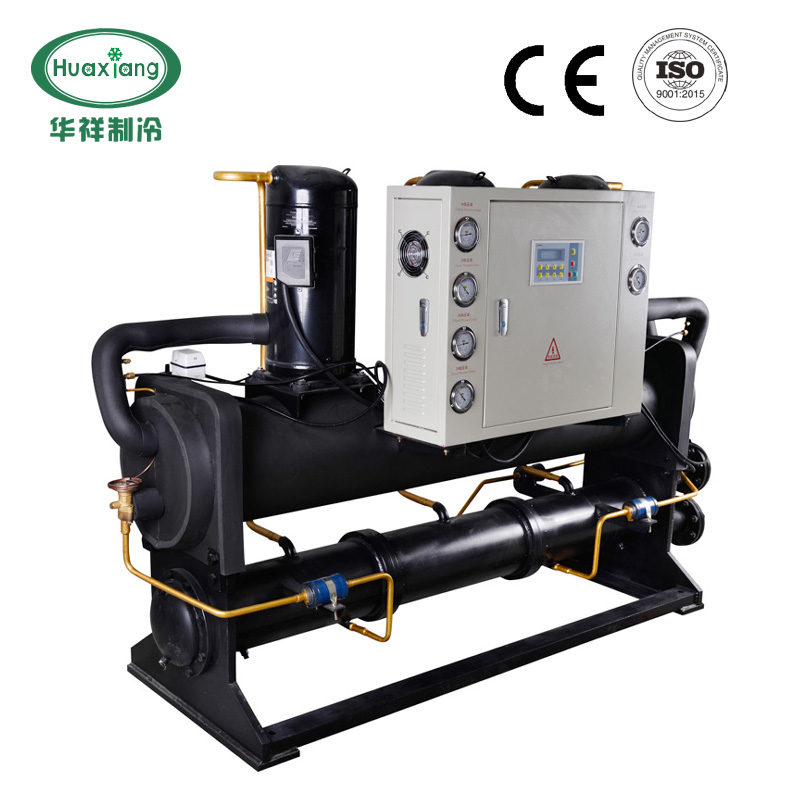

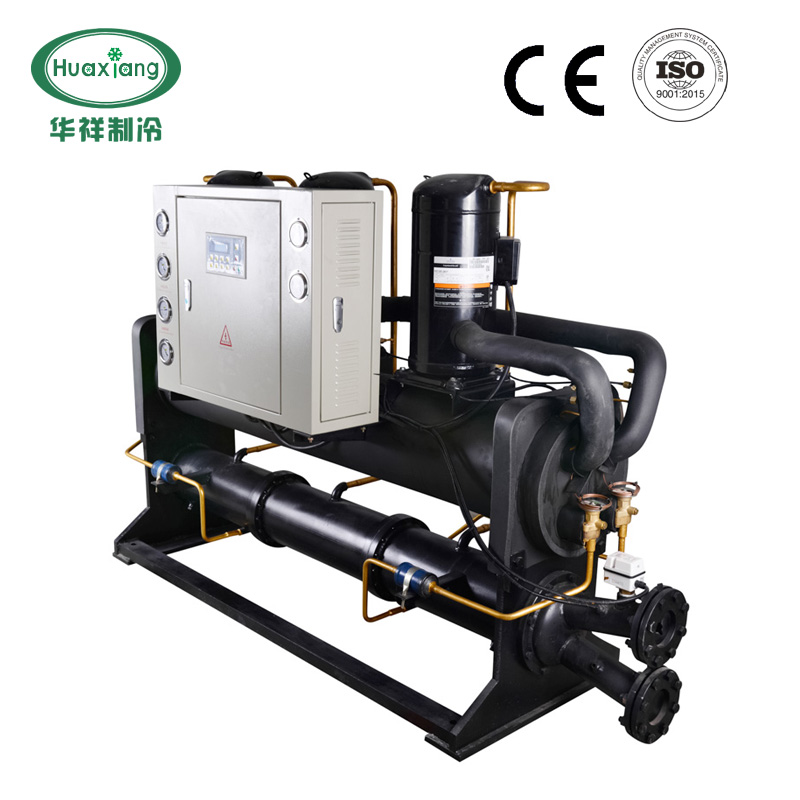

Industrial chiller water cooled chiller HX(T)-30W, with scroll type compressor, it's a normal temperature chiller, cooling capacity is 104 KW, chilled water inlet/outlet temperature 7ºC/12ºC, cooling water inlet/outlet temperature 30ºC/35ºC.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Parameter Table

FAQ

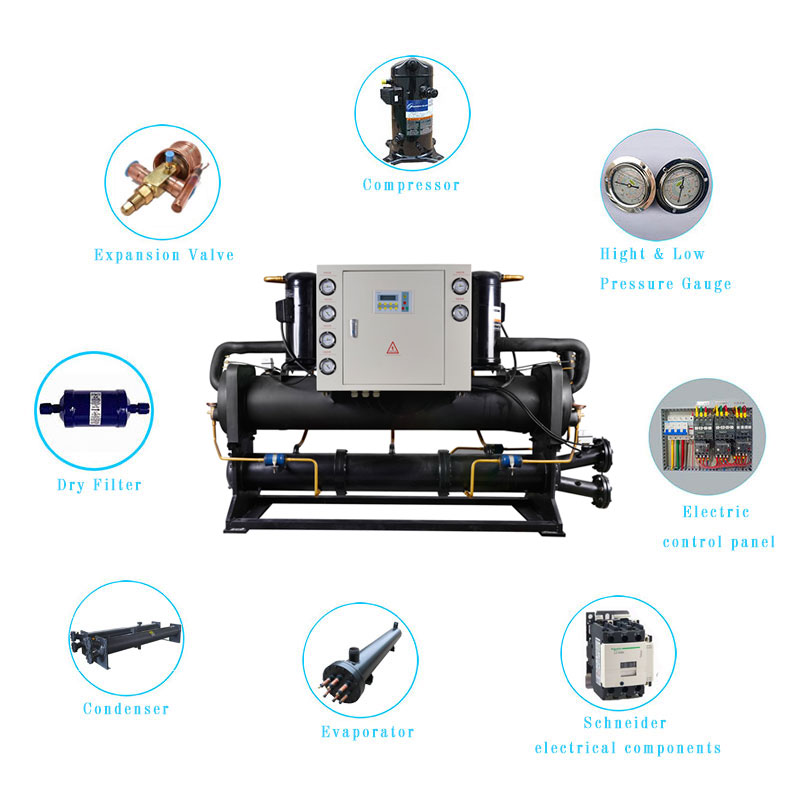

水冷台架主图和配件示意图

Huaxiang water-cooled chiller is manufactured with modern and advanced technology, with high quality and beautiful appearance. The water-cooled scroll chiller uses a shell-and-tube evaporator to exchange heat between the water and the refrigerant. The refrigerant system absorbs the heat load in the water, so that the water is cooled to produce cold water, and then the heat is brought to the shell-and-tube condenser by the action of the compressor. The heat exchanger between the refrigerant and the water causes the water to absorb heat and then dissipates the heat through the water pipe to the outside cooling tower.

Water cooled industrial chiller, with High energy saving, saving 20% --30% compared with normal air-cooled chiller.

Product features

1. The whole series adopts scroll compressor with high efficiency and low noise.

2. The controller adopts the advanced integrated single chip microcomputer, which greatly improves the anti-interference ability of the system, has beautiful appearance and is easy to install. The front and rear plates exchange data through 485 communication mode, and the whole system can be installed integrally or separately.

3. With the advanced parallel multi-loop system, each compressor can be opened and balanced according to the change of system load. When the partial load, the energy saving effect is particularly obvious.

4. The evaporator and condenser have the manufacture certificate and design certificate of class D1 and D2 pressure vessels. The condenser adopts shell and tube type to reduce the phenomenon of water pipe blockage for facilitate cleaning and maintenance.

5. The unit can be started in stages to reduce the impact on the power grid. Also, it can reduce energy consumption with multi – level automatic unloading.

6. Slim shape, easy operation, easy installation, easy cleaning and maintenance.

7. The unit is installed indoor/outdoor without special machine room and has longer service life.

Application

Industrial chillers are widely used in Plastic & Rubber industry, Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplating, Printing, Packaging, Ultrasound, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military etc. It can accurately control the temperature to reach the cooling effect you request, increase the product quality and improve the production efficiency.

Product model			HX(T)-20W	HX(T)-25W	HX(T)-30W	HX(T)-40W	HX(T)-50W	HX(T)-60W
Cooling capacity		KW	65.6	75	104	112.5	163	206
		Kcal/h	56400	64500	89400	96700	141000	177000
Input power		KW	17.2	21	25	34	41	50.5
Rated current		A	33	41	52	66	83	97.8
Control system			Fully automatic
Work environment		℃	-10℃~43℃
Power supply		V	3P-380V-50Hz(Non-standard voltage can be customized)
Compressor	Type		Hermetic scroll type
	Power (KW)		7.5*2	8.8*2	7.5*3	7.5*4	8.8*4	8.8*5
Refrigerant	Type		R22(Optional environment-friendly refrigerant:R407C/R134A/R404A)
	Charge volume (KG)		10	12.5	15	20	25	30
	Control Mode		Thermostatic expansion valve
	Refrigeration system		2		3	4		5
Condenser	Type		Shell and Tube Type
	Dia. of pipe (mm)		DN-50	DN-50	DN-65	DN-65	DN-80	DN-80
	Cooling water flow (m³/h)		13.5	15.4	21.3	23.2	32	42
Evaporator	Type		Shell and Tube Type
	Chilled water flow (m³/h)		11.3	12.9	17.8	19.3	28.6	36
	Pressure (Mpa)		1.5Mpa
	Dia. of pipe (mm)		DN-50	DN-50	DN-65	DN-65	DN-80	DN-80
Safety device			Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection, safety valve, overload protection, under voltage, over voltage etc.
Dimention	L (mm)		1700	1700	1900	1900	1900	2300
	W (mm)		650	650	650	650	800	900
	H (mm)		1650	1650	1650	1650	1650	1680
Weight	KG		600	750	850	1000	1100	1400
Remark: The above specifications are according to the following design conditions: 1. Cooling capacity is designed according to the following conditions: Chilled water inlet temperature 12℃, chilled water outlet temperature 7℃; Cooling water inlet temperature 30℃, cooling water outlet temperature 35℃; 2. The product specifications in the above parameter list adopt water tank coil evaporator + pump; For products with refrigerating capacity of 30HP and above, shell tube evaporator + water tank + chilled water pump can be selected; 3. Both English and Chinese language interface digital series control system; Programmable PLC system with RS485 communication; 4. The design pressure of chilled water side and cooling water side of the standard model is 1.5mpa; Container pressurized equipment (special ordering machine) applicable design pressure: 1.6mpa cooling water side, 1.0mpa frozen water side; 5. The main power supply: 3 phase 380V 50Hz; Operation power: single-phase 220V 50Hz; When ordering non-standard power supply, please apply in advance.

Q1: Are you a manufacturer?
A1: Yes we are a manufacturer with OEM & ODM services. We have more than 15 years of experience on industrial water chiller and provides professional reliable and economical cooling solution. Our factory located in Dongguan City, Guangdong Province; Welcome to visit us at any time.

Q2: Could you help us to recommend the model for our project?
A2: Yes, we have engineer to check the details and choose the correct model for you. Based on the following:
1) Cooling capacity;
2) If you don’t know, you can offer the flow rate to your machine, temperature in and temperature out from your using part;
3) Environment temperature;
4) Refrigerant type, R22, R407c or other, pls clarify;
5) Voltage;
6) Application industry;
7) Pump flow and pressure requirements;
8) Any other special requirements.

Q3: How to ensure your product with good quality?
A3: All our products with CE certificate and our company Strictly comply with ISO900 quality management system. We use the worldwide famous brand accessories, such as DANFOSS, COPELAND, SANYO, BITZER, HANBELL compressors, Schneider electrical components, DANFOSS/EMERSON refrigeration components.
The units will be fully tested before package and The packing will be carefully checked.

Q4: What’s the warranty?
A4: 1 year warranty for all parts; Whole life labor free!

Q5: What is a water chiller system?
A5: Chiller is a machine that removes heat from a liquid via a vapor-compression or absorption refrigeration cycle. This liquid can then be circulated through a heat exchanger to cool equipment, or another process stream (such as air or process water).

Q6: How does a water chiller work?
A6: The process water is the means by which heat transfers from the process to the chiller.
