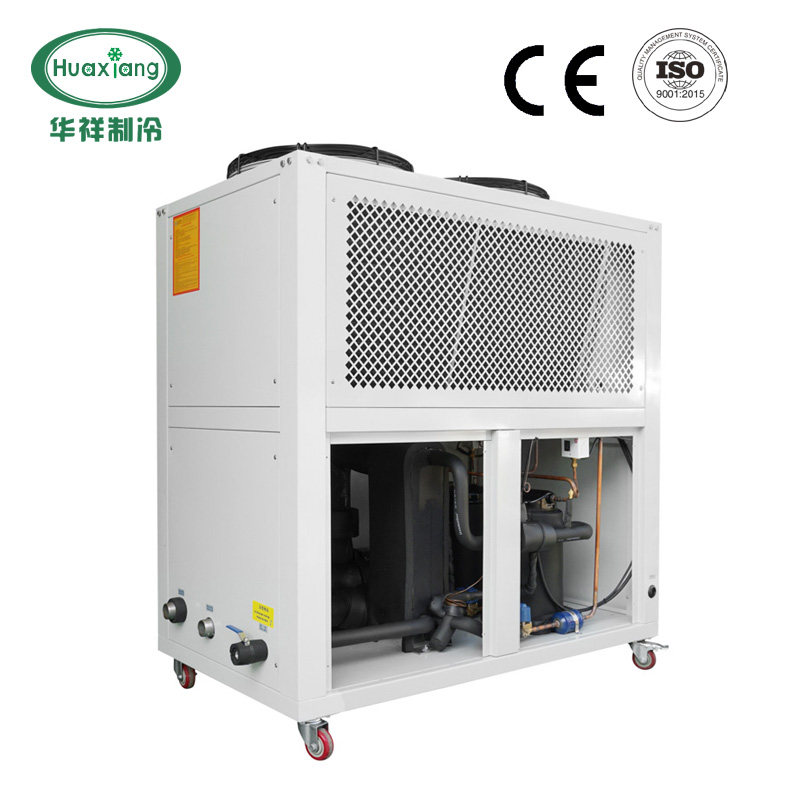

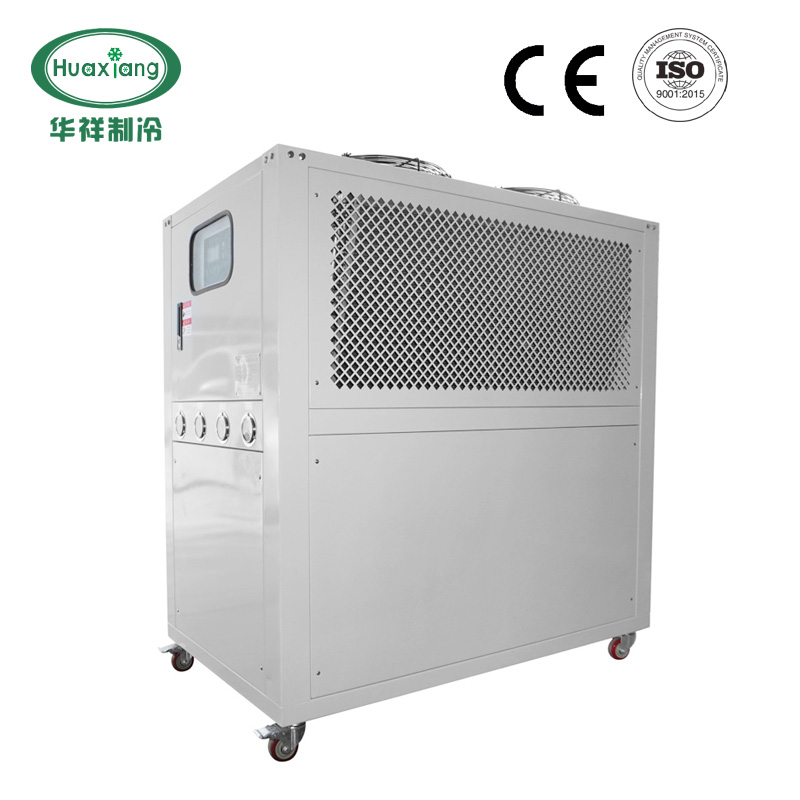

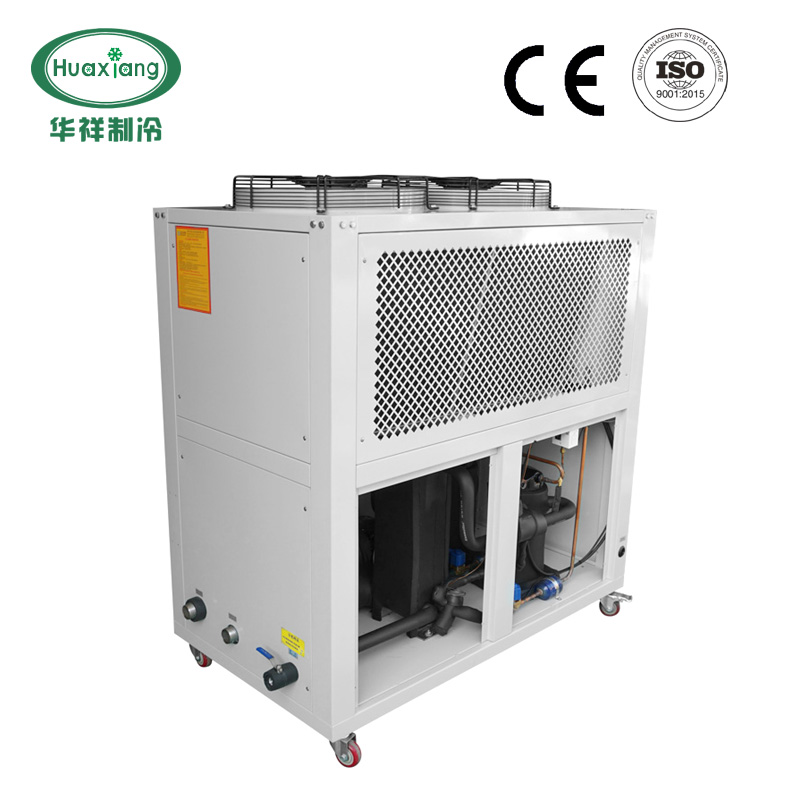

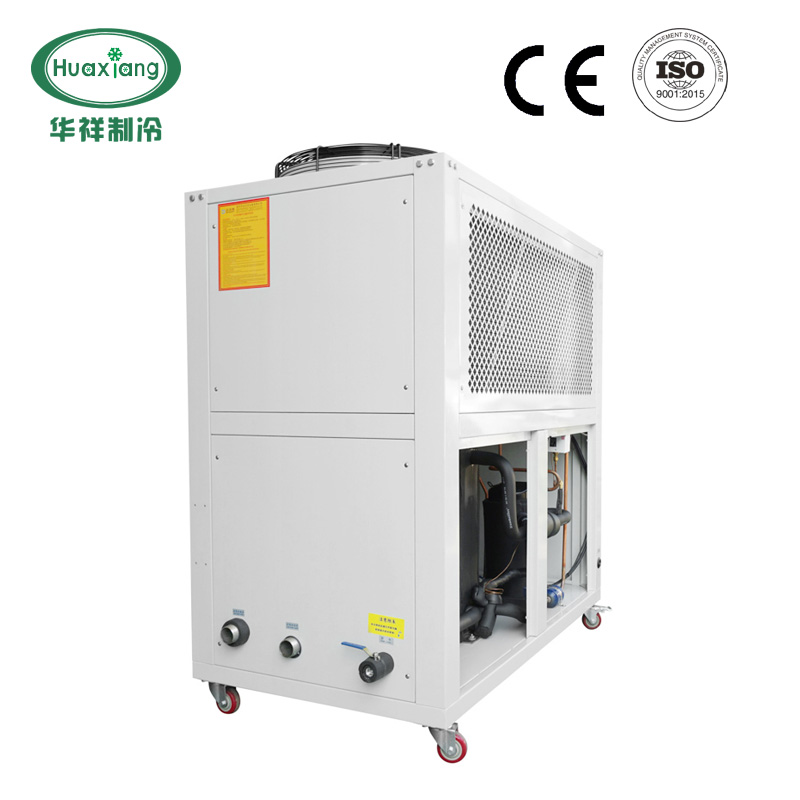

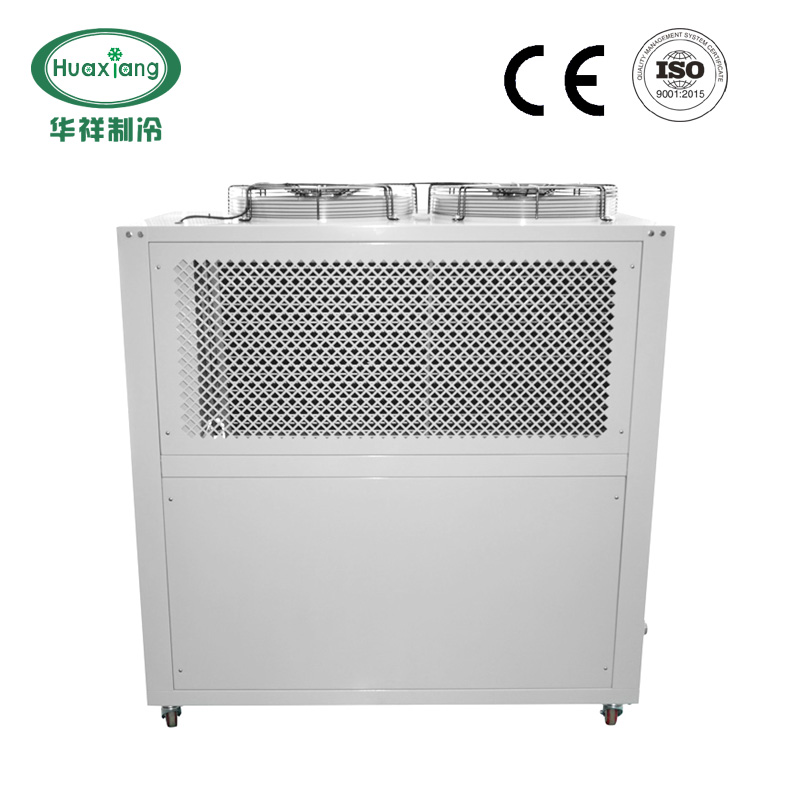

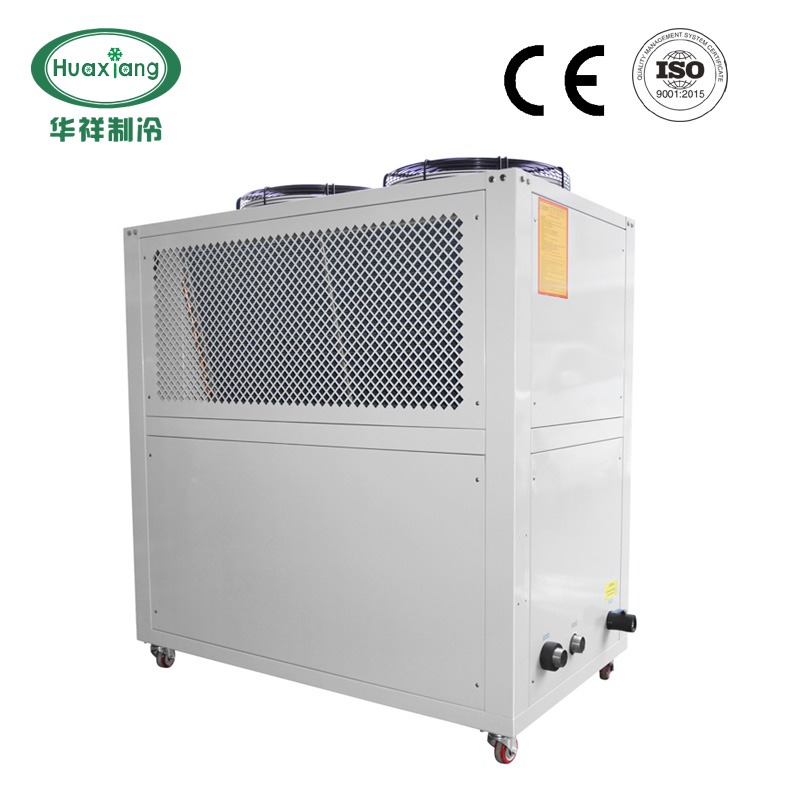

Air Cooled Room Temperature Vortex HX-10FW

Huaxiang air-cooled industrial chiller adopt of advanced manufacturing production technology, excellent quality, compact structure, nice appearance. Cooling capacity range from 2400Kcarl/h- 12000Kcal/h (1HP-50HP).

Air cooled chiller systems typically are easy to install and maintenance, have a lower maintenance cost since they do not require a cooling tower, water pumps, and associated condenser water chemical treatment. In addition, these small industrial chillers are normally used in Metal working, Laser, Electroplating, Printing, Packaging, Ultrasound, Water jet, Vacuum coating, etc.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Parameter Table

FAQ

1. Adopted world famous brand compressors and high efficiency condenser and evaporator, ensure high cooling efficiency, low energy consumption, low noise and long service life.

2. 100% original brand parts, including compressor, electrical components and refrigeration components. Danfoss/Copeland scroll compressor; Schneider electrical components; Danfoss/Emerson thermal components.

3. Self-processing components: Condenser, Evaporator, SS storage tank and Cabinet self-processing.

4. Copper coil built in SS tank evaporator, easy for cleaning and installation (plat type, shell and tube available on request).

5. Refrigerant: R22 charged, R407C, R410A, R134A for option.

6. Over-sized evaporator and condenser ensure the chiller unit could running under 45ºC high ambient temperature.

7. Microcomputer control system offering accurate temperature stability within ±1ºC. Intelligent PLC microcomputer control, no need manual monitoring, 485 communication interface remote control and centralized management.

8. Multi-protection devices ensure the chiller unit running safety.

9. The innovative evaporator-in-tank configuration ensure a steady water temperature offered, as the evaporator also cools the tank itself, reduces ambient heat again, and increases the efficiency.

10. Energy efficient solutions: our specialists are aware of the rising cost of energy and the pressure to reduce energy consumption, and offer many energy saving products that favor life time costs including variable speed pump & fan packages and energy efficient refrigeration products.

11. Low noise and big volume air blower.

Application

Industrial chillers are widely used in Plastic & Rubber industry, Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplating, Printing, Packaging, Ultrasound, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military etc. It can accurately control the temperature to reach the cooling effect you request, increase the product quality and improve the production efficiency.

Product model			HX-02FW	HX-03FW	HX-05FW	HX-06FW	HX-08FW	HX-10FW	HX-12FW
Rated cooling capacity		kw	5.6	8.4	14	17	22	28	34
Rated cooling capacity		Kcal/h	4816	7224	12040	14448	18920	24080	29240
Input power		kw	1.8	2.8	4.5	6.0	6.5	8.4	11
Rated current		A	3.02	4.3	7.43	11	12	15	19
Control system			Fully automatic
Work environment		℃	-20℃~43℃
Power supply		V	1P-220V-50Hz		3P-380V-50Hz (Voltage can be customized)
Compressor	Type		Hermetic scroll type
Compressor	Power (KW)		1.5	2.2	3.75*1	4.0*1	5.5*1	3.75*2	4.2*2
Refrigerant	Type		R22(Optional environment-friendly refrigerant:R407C/R134A/R404A)
	Charge volume (KG)		1	1.5	3	3.1	4.5	6	7
	Control mode		Capillary			Expansion valve
Condenser	Type		High efficient aluminum finned coil copper tube+Low noise axial fan
	Air volume (m³/h)		2200	3100	5400	6500	8100	11000	12800
	Fan power (KW)		0.18*1	0.19*1	0.19*2	0.19*2	0.52*2	0.52*2	0.55*2
Evaporator	Type		Water tank with coil / Shell and tube
	Chilled water flow (m³/h)		1	1.5	2.6	3	3.5	5	6
	Pressure (Mpa)		1.5Mpa
	Dia. of pipe (mm)		DN-32					DN-40
Pump	Type		Horizontal stainless steel pump
	Power (KW)		0.2	0.37	0.37	0.37	0.55	0.75	0.75
	lift (M)		16	25	43	50	58	100	125
Water tank	Material		304 stainless steel
Water tank	Volume (L)		30	45	60	70	80	120	210
Safety device			Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection, safety valve, overload protection, under voltage, over voltage etc.
Dimension	L (mm)		630	940	1100	1100	1350	1450	1510
	W (mm)		470	555	700	700	740	780	780
	H (mm)		800	1060	1350	1350	1430	1550	1600
Weight	KG		72	120	150	160	170	350	420
Remark: The above specifications are according to the following design conditions: 1. Chilled water inlet temperature 12℃, chilled water outlet temperature 7℃; Condenser air inlet temperature 35℃, condenser air outlet temperature 40℃; 2. The product specifications in the above parameter list adopt water tank coil evaporator + pump; For products with refrigerating capacity of 30HP and above, shell tube evaporator + water tank + chilled water pump can be selected; 3. Both English and Chinese language interface digital series control system; Programmable PLC system with RS485 communication; 4. The design pressure of chilled water side and cooling water side of the standard model is 1.0mpa; Container pressurized equipment (special ordering machine) applicable design pressure: 1.6mpa cooling water side, 1.0mpa frozen water side; 5. The main power supply: 3 phase 380V 50Hz; Operation power: single-phase 220V 50Hz; When ordering non-standard power supply, please apply in advance.
