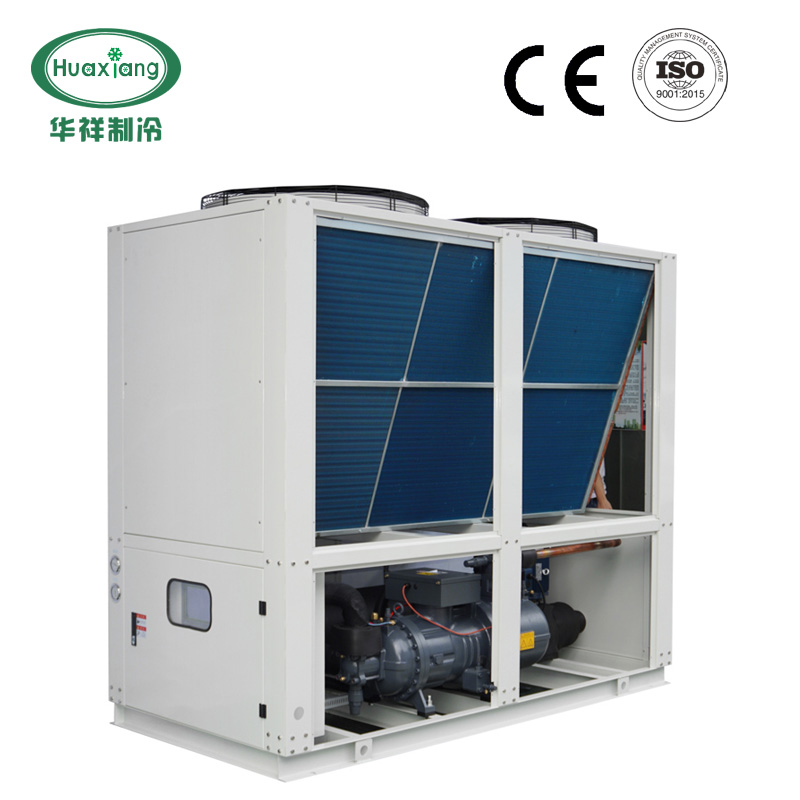

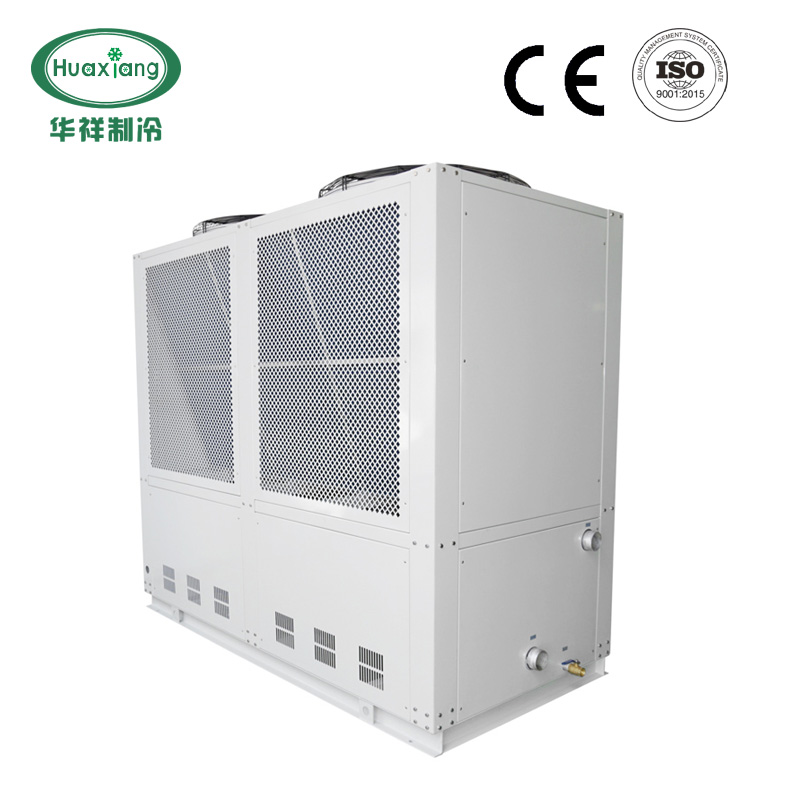

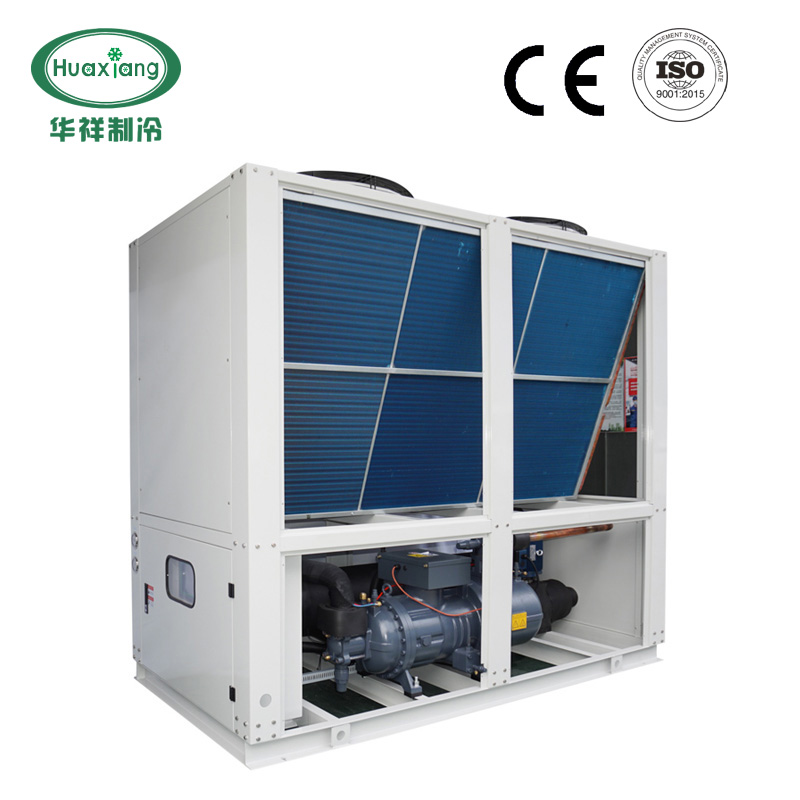

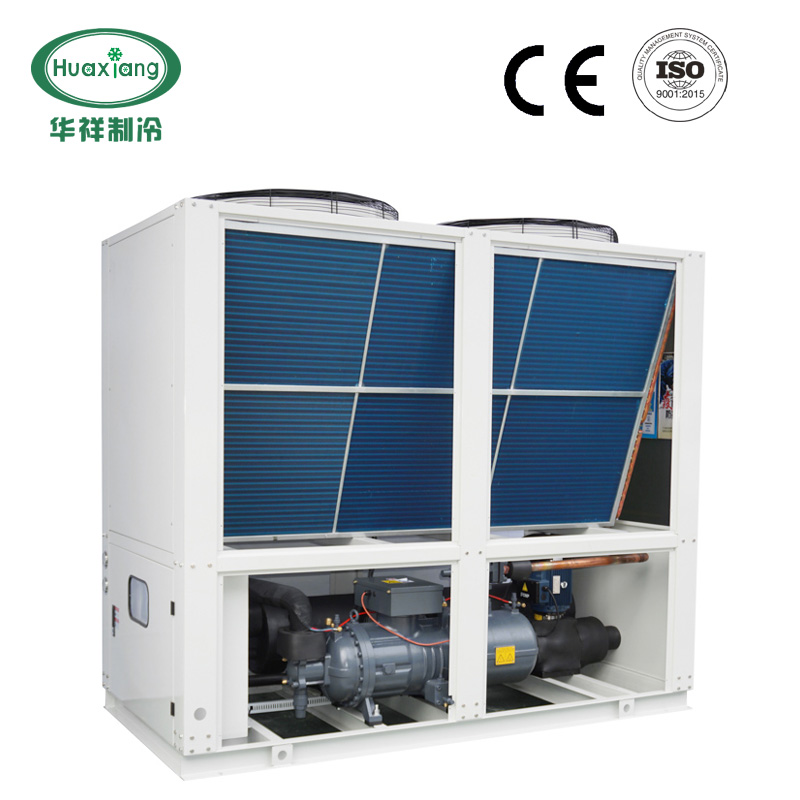

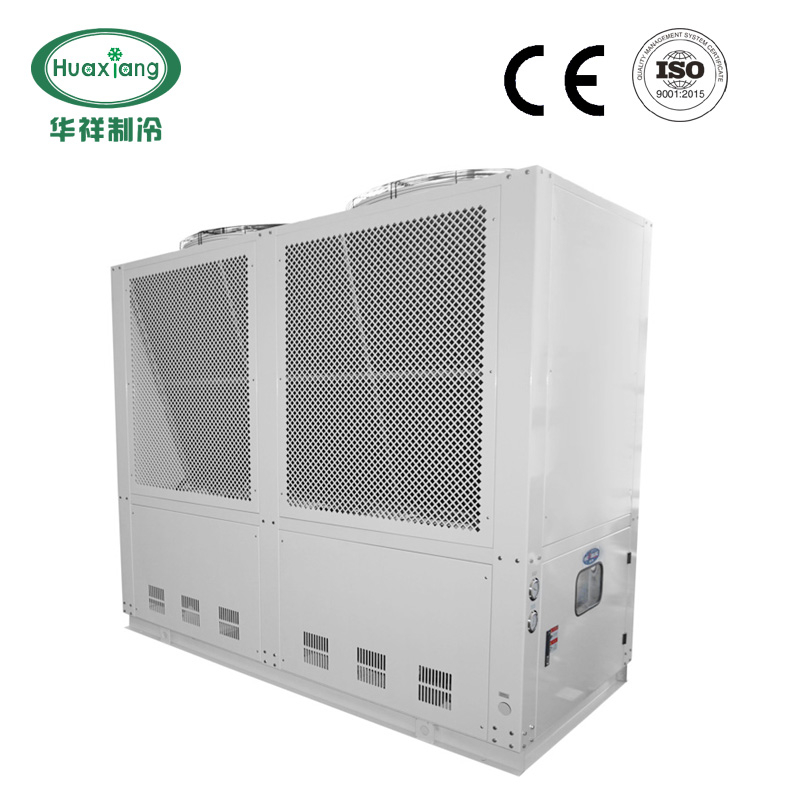

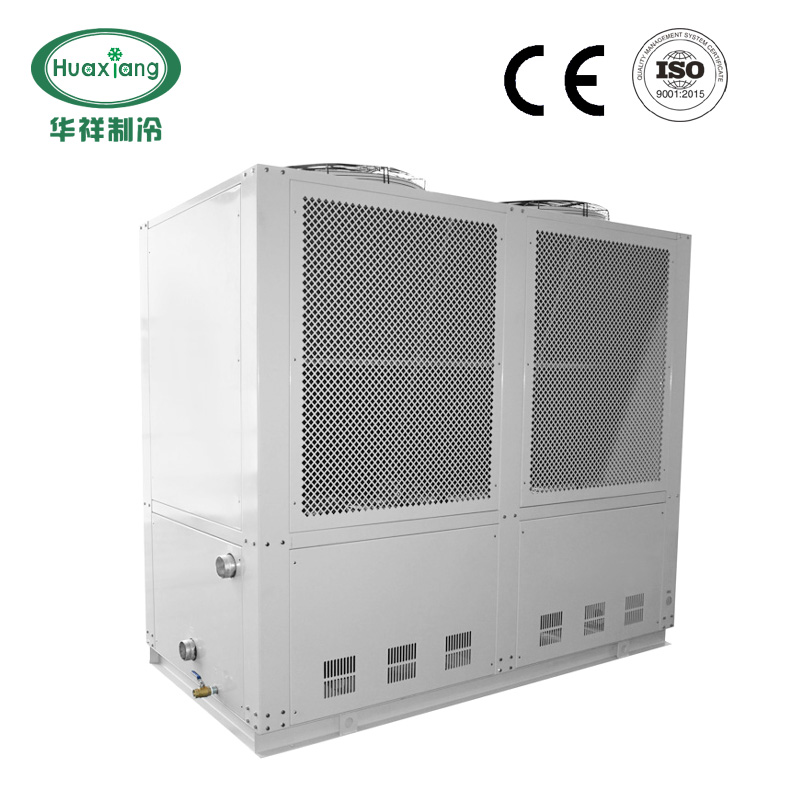

HX series screw type air cooled water chillers are widely used in plastic, electroplating, electronics, chemical, pharmaceutical, printing, food processing and other various industrial refrigeration process need to use chilled water areas. Only the highest quality materials used and that made by workers with the most experience and knowledge in the industry. Simple in structure convenient operation and installation, stable quality and longer service life.

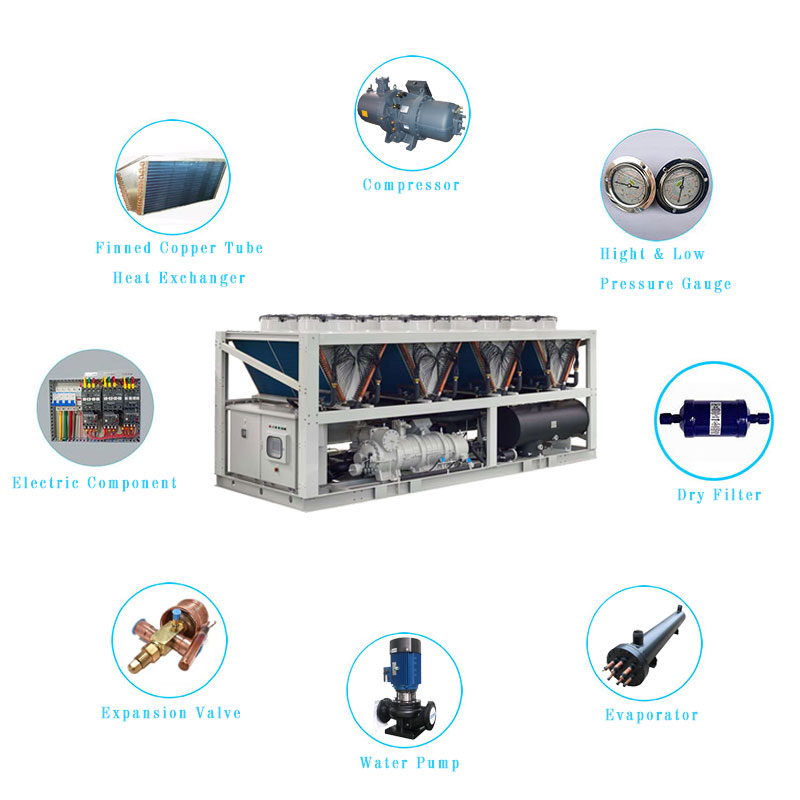

Air Cooled Water Chiller using the high-efficient screw-rotor compressor, the condenser of the air-cooled chiller unit is made of aluminum fins and row column tubes to guarantee the high efficiency of heat exchange. Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃. Stainless steel water pump featuring wide working range, low noise, reliable performance. Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system. Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration. Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.
Product features:
1. High efficiency and energy saving
The famous brand Bitzer and Hanbell high efficiency screw compressor, the fin type heat exchanger with large cooling capacity adopts the high efficiency heat exchange copper pipe and hydrophilic fin, the integrated design of the inverted M layout, the system is optimized to achieve the best match, the refrigerant has a variety of choices such as R407C, R134A.
2. Microcomputer intelligent control
Industrial PLC centralized control combined with compressor capacity control system, precisely monitor. Siemens PLC control, LCD touch screen interface. Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor over temperature, oil differential, flow switch, startup latency. Unit RS485 communication interface can achieve remote control.
3. Modular design
Multi-machine module combination can be realized between different types of units. Module units are controlled centrally through the main module, and coordinate the start and stop of each unit according to the requirements of operation load and operation time.
4. High reliability and long service life
All refrigeration parts and electrical components of the unit come from high-quality suppliers. All parts with excellent performance and quality have undergone strict reliability tests. The unit is equipped with a motor cooling system, which ensures a good operating environment for the refrigeration compressor and greatly improves the service life of the unit.
5. Convenient installation
The unit, taking the air as the cold source and saving the tedious cooling water system, especially suitable for the area which lacks water. Box type design which do not need independent machine room, can be installed in the ground, roof and other outdoor areas, and is easy to install and maintain.
6. Comprehensive service
Processional Team: Engineering team with average 15 years of experience in industrial refrigeration, sales team with average 7 years of experience, Service team with average 10 years of experience.
Customized solution always supplied according to requirements.
3 steps quality control: incoming quality control, process quality control, outgoing quality control.
12 months guarantee for all products. Within warranty, any problem caused by defects of chiller itself, service offered till the problem solved.
