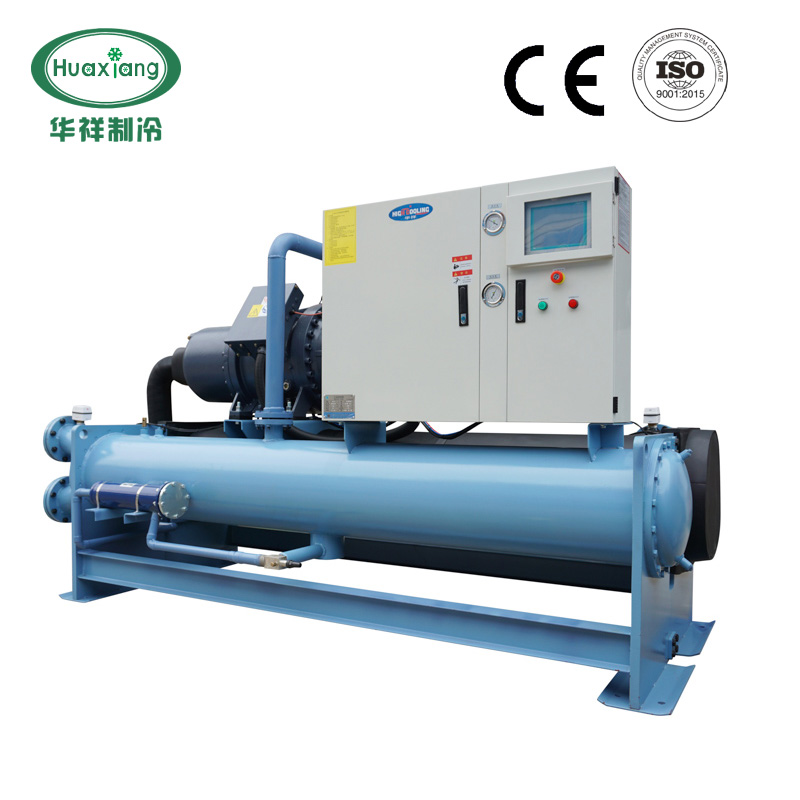

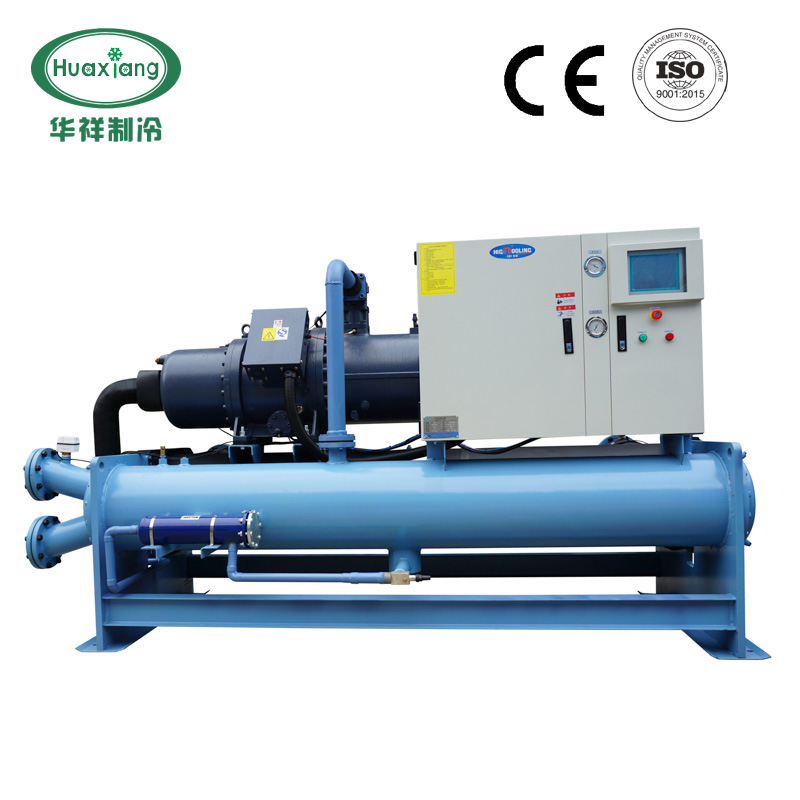

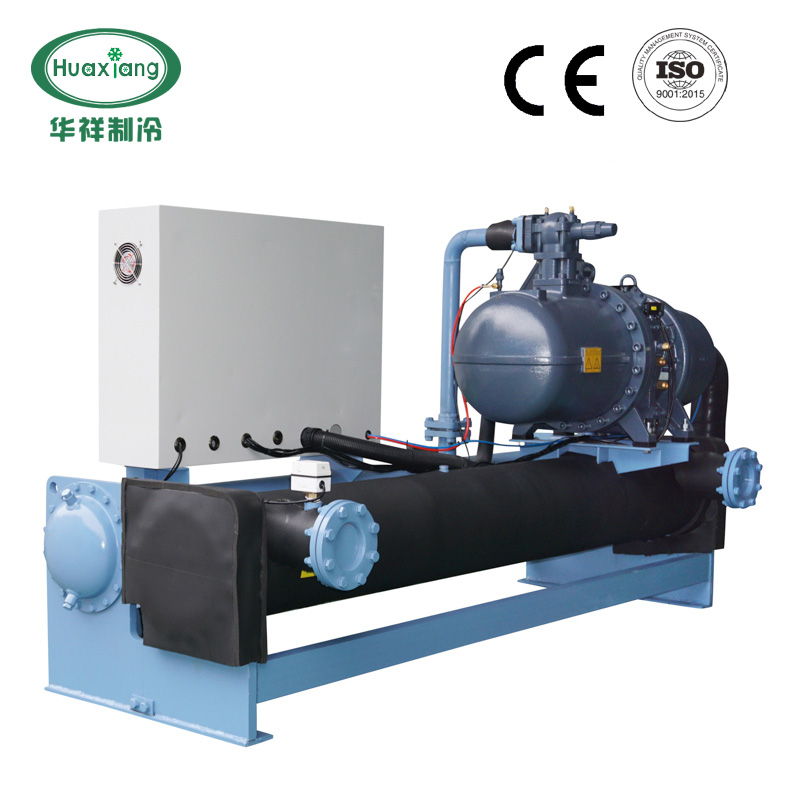

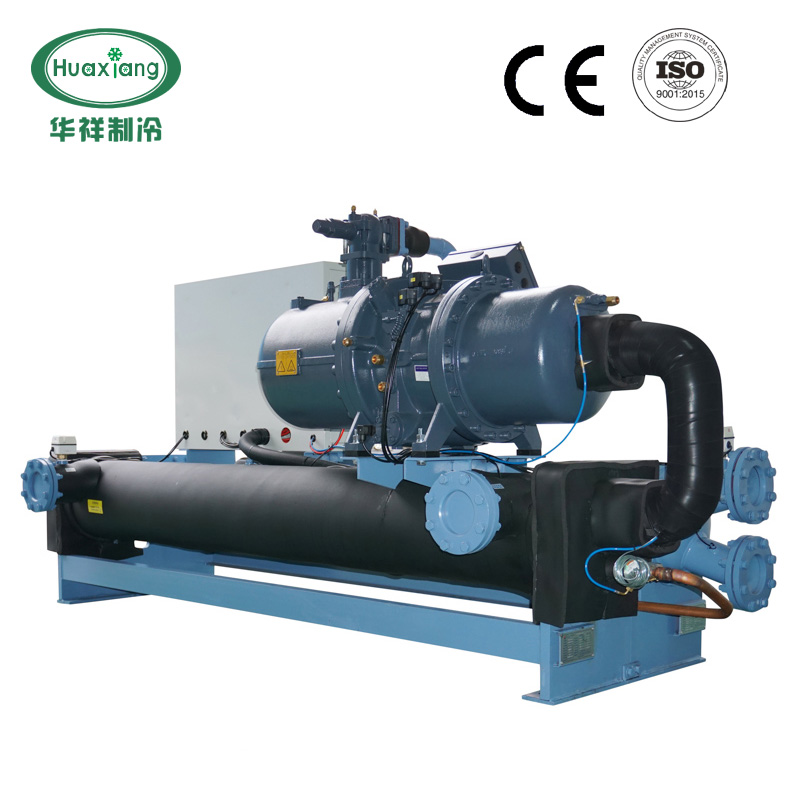

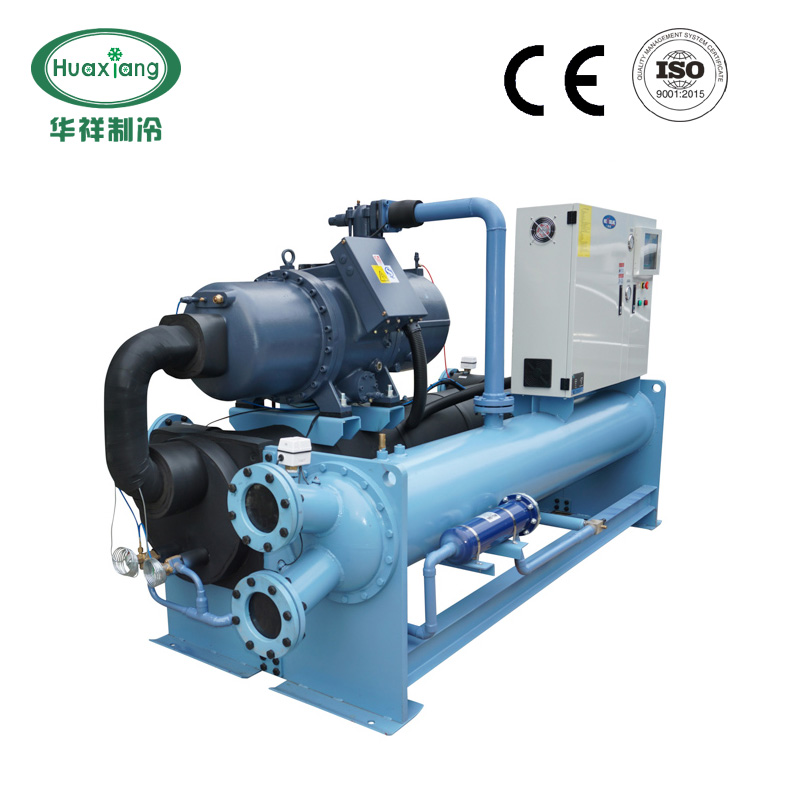

Water Cooled Room Temperature Single Screw HX-200SL

Industrial chiller water cooled screw chiller HX-200SL , with semi-hermetic screw type compressor, it's a low temperature chiller, cooling capacity is 650 KW.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Parameter Table

FAQ

HX series screw type water cooled screw chillers are widely used in plastic, electroplating, electronics, chemical, pharmaceutical, printing, food processing and other various industrial refrigeration process need to use chilled water areas.

Water cooled screw chiller can be divided into two types: single-screw chillers and double-screw chillers and select the most efficient semi-enclosed compressor unit’s heart - high quality imported screw compressor, its 5:6 ultra -efficient helical rotor compressor is 20%~30% better than the general compressor unit. reliable operation, high efficiency, easy maintenance, accurate control and wide application range. The whole machine controls the temperature accurately. Units PLC controller uses large-screen touch LCD to display, and has a good all-Chinese man-machine dialogue interface to realize fully automatic control. The liquid crystal display screen displays the working condition of the machine in real time and precisely monitors the unit running in the best condition, its contact panel is well sealed, waterproof, dustproof, anti-corrosion, long key life.

SIEMENS control system: Realizing starting-on control process, energy regulating process, stop control process, mal-function auto-stop, mal-function diagnose, statistics of operation time, operating status display and reboot recovery process.

Computer LCD touch screen controller: Reflecting the running situation well and operation more convenient. With RS485 remote connection function.

Features

1. Adopt international advanced efficient single or twin-screw compressor, matching optimization condenser and evaporator. High efficiency, stable performance, low noise, long service life.

2. The Flexibility design for capacity regulator can make the continuity adjust between 25% to 100% (stepless adjustable), to ensure that the compressor efficiency fully play and help the user to save operating cost.

3. Reasonable economizer, secondary oil separator, oil cooler, the application of liquid spray technology greatly improves the reliability of the product.

4. Unit configurate compressor exhaust overtemperature protection, lack and inverse phase protection, motor overload protection, overheating protection, high and low voltage protection, low temperature protection and other kinds of safety device to ensure the safety operation of the unit.

5. The intelligent microcomputer control system, provide the most considerate service, simple and easy maintenance information, and can be connected to the central control system, all-round monitoring unit operation.

6. The Unit design is reasonable, beautiful, small size, save floor space.

Advantages

1. We are the professional manufacturer of industrial chiller with OEM & ODM services, with more than 15 years of experience on industrial water chiller and provides professional reliable and economical cooling solution to customers.

2. Professional and experienced technician & sales team service to the oversea market, offering professional solution according to requirements.

3. Stable quality, fast delivery, reasonable price, strong tech support. Some air-cooled chillers in stock for immediately delivery.

4. Stable staffs can ensure stable and high-quality productivity. To ensure high quality service and efficient after-sales support.

5. Steps quality control: incoming quality control, process quality control, outgoing quality control.

6. Passed ISO9001 international quality certification system; Have CE certification for main products.

7. Service call response within 1 hour, solution offered within 24hrs.

Product model		HX-130SL	HX-150SL	HX-160SL	HX-180SL	HX-200SL	HX-240SL	HX-260SL	HX-300SL
Refrigerant		R22	R22	R22	R22	R22	R22	R22	R22
Cooling capacity	X1000Kcal/h	361.2	404.2	454.0	510.8	567.0	681.1	737.8	842.8
Cooling capacity	kW	420.0	470.0	520.0	590.0	650.0	790.0	850	980
Input power	kW	103.0	108.0	110.0	128.0	133.0	163.0	178	200
Running current(A)		185.0	194.0	198.0	230.0	239.0	293.0	320	360
Power supply		3Phase/380V/50Hz (Non-standard voltage can be customized)
Temperature control range		5-35℃
Temperature control accuracy		±1℃

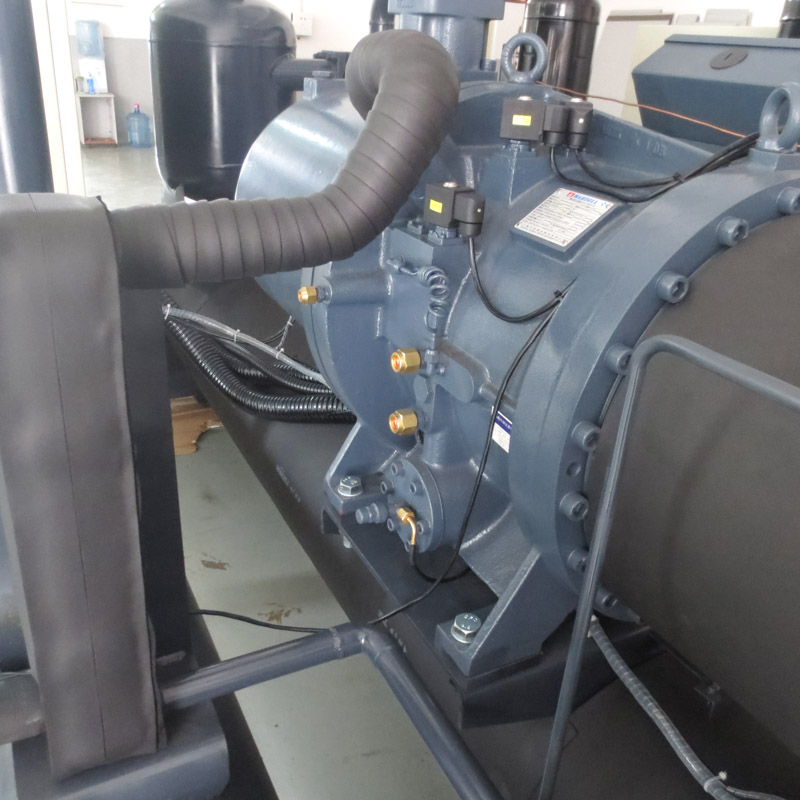

Compressor	Type	Semi-hermetic single-screw type
	Power(KW)	103.0	108.0	118.0	128.0	133.0	163.0	178	201
	Start mode	Y-Δ
	Capacity control(%)	0%.25%.50%.75%.100%
Refrigerant	Type	R22(Optional environment-friendly refrigerant:R407C/R134A/R404A)
	Charge volume (KG)	68.0	75.0	87.0	98.0	109.0	122.0	135	155
	Control mode	Thermostatic expansion valve
Condenser	Type	Shell and Tube Type
	Max pressure(Mpa)	1.0
	Dia.of pipe(inch)	5"		5"			6"
	Cooling water flow(m³/h)	65.0	75.0	80.0	90.0	100.0	120.0	130	150
Evaporator	Type	Shell and Tube Type
	Max pressure(Mpa)	1.0
	Dia.of pipe(inch)	5"		5"			6"
	Chilled water flow(m³/h)	78.0	90.0	96.0	108.0	120.0	144.0	156	180
Running noise dB(A)		92
Safety device		Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection, safety valve, overload protection, under voltage, over voltage etc.
Dimension	L/mm	2400.0	2500.0	3000.0	3000.0	3500.0	3500.0	4000	4000
	W/mm	1200.0	1250.0	1500.0	1500.0	1360.0	1360.0	1500	1500
	H/mm	1700.0	1850.0	1850.0	1850.0	1900.0	1900.0	2000	2000
Total weight (kg)		2830.0	3000.0	3300.0	3500.0	3800.0	4100.0	4350	4550
Remark: The above specifications are according to the following design conditions: 1. Cooling capacity is designed according to the following conditions: Chilled water inlet temperature 12℃, chilled water outlet temperature 7℃; Cooling water inlet temperature 30℃, cooling water outlet temperature 35℃; 2. Control system design for computer control system, touch screen, PLC programmable system, with RS485 communication; 3. The design pressure of chilled water side and cooling water side of the standard model is 1.0mpa; Container pressurized equipment (special ordering machine) applicable design pressure: 1.6mpa cooling water side, 1.0mpa frozen water side; 4. The main power supply: 3 phase 380V 50Hz; Operation power: single-phase 220V 50Hz; When ordering non-standard power supply, please apply in advance.

Q1: Are you a manufacturer?

A1: Yes we are a manufacturer with OEM & ODM services. We have more than 15 years of experience on industrial water chiller and provides professional reliable and economical cooling solution. Our factory located in Dongguan City, Guangdong Province; Welcome to visit us at any time.

Q2: Could you help us to recommend the model for our project?
A2: Yes, we have engineer to check the details and choose the correct model for you. Based on the following:
1) Cooling capacity;
2) If you don’t know, you can offer the flow rate to your machine, temperature in and temperature out from your using part;
3) Environment temperature;
4) Refrigerant type, R22, R407c or other, pls clarify;
5) Voltage;
6) Application industry;
7) Pump flow and pressure requirements;
8) Any other special requirements.

Q3: How to ensure your product with good quality?
A3: All our products with CE certificate and our company Strictly comply with ISO900 quality management system. We use the worldwide famous brand accessories, such as DANFOSS, COPELAND, SANYO, BITZER, HANBELL compressors, Schneider electrical components, DANFOSS/EMERSON refrigeration components.
The units will be fully tested before package and The packing will be carefully checked.

Q4: What’s the warranty?
A4: 1 year warranty for all parts; Whole life labor free!

Q5: What is a water chiller system?
A5: Chiller is a machine that removes heat from a liquid via a vapor-compression or absorption refrigeration cycle. This liquid can then be circulated through a heat exchanger to cool equipment, or another process stream (such as air or process water).

Q6: How does a water chiller work?
A6: The process water is the means by which heat transfers from the process to the chiller.
