Water Cooled Low-temperature Vortex Box Type HX-20SWD

Industrial chiller water cooled chiller HX-20SWD, with scroll type compressor, it's a normal temperature chiller, cooling capacity is 38KW, chilled water inlet and outlet temperature is designed by 5℃ temperature difference, condensation temperature is calculated by 40℃.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Parameter Table

FAQ

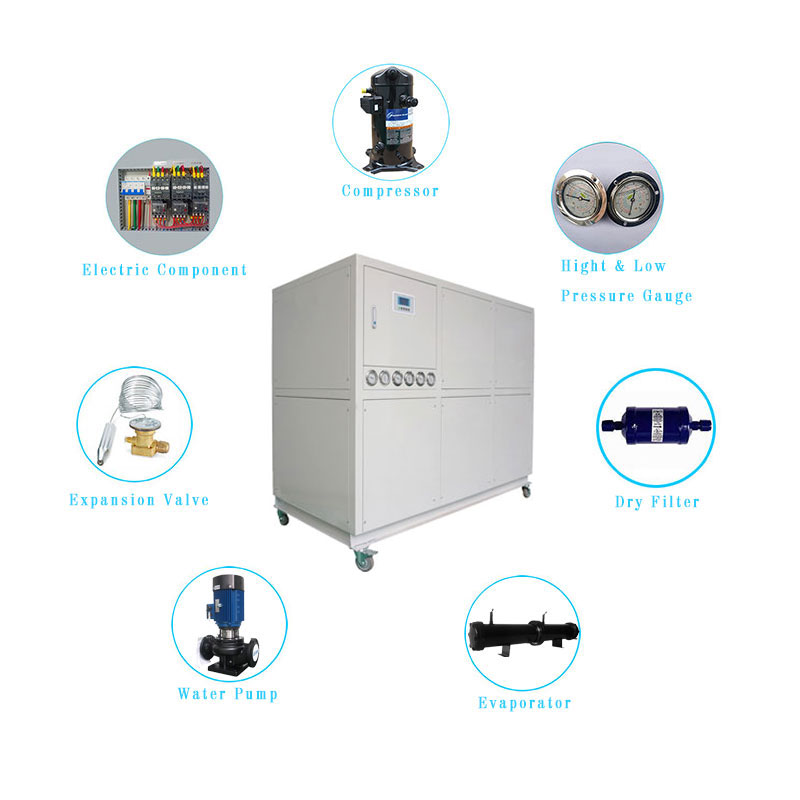

水冷箱体主图和配件示意图

This water-cooled water chiller adopted world famous brand compressors and high efficiency condenser and evaporator, ensure high cooling efficiency, low energy consumption, low noise and long service life. It can accurately control the temperature to reach the cooling effect you request, increase the product quality and improve the production efficiency.

Huaxiang water-cooled box chiller combines the essence of similar products at home and abroad, and is manufactured with modern and advanced technology, with high quality and beautiful appearance. Selected original imported brand-name equipment materials, good performance, low noise, can be changed according to load, automatic alternate operation, greatly extending the life of the chiller. There is also a high-intelligent PLC, PC-level computer control system, which can be used for remote monitoring and control. It is easy to operate and can be adjusted in time. Low failure rate and high safety factor. Wide range of applications.

Product features

1. Adopted world famous brand compressors and high efficiency condenser and evaporator, ensure high cooling efficiency, low energy consumption, low noise and long service life.

2. 100% original brand parts, including compressor, electrical components and refrigeration components. Danfoss/Copeland scroll compressor; Schneider electrical components; Danfoss/Emerson thermal components.

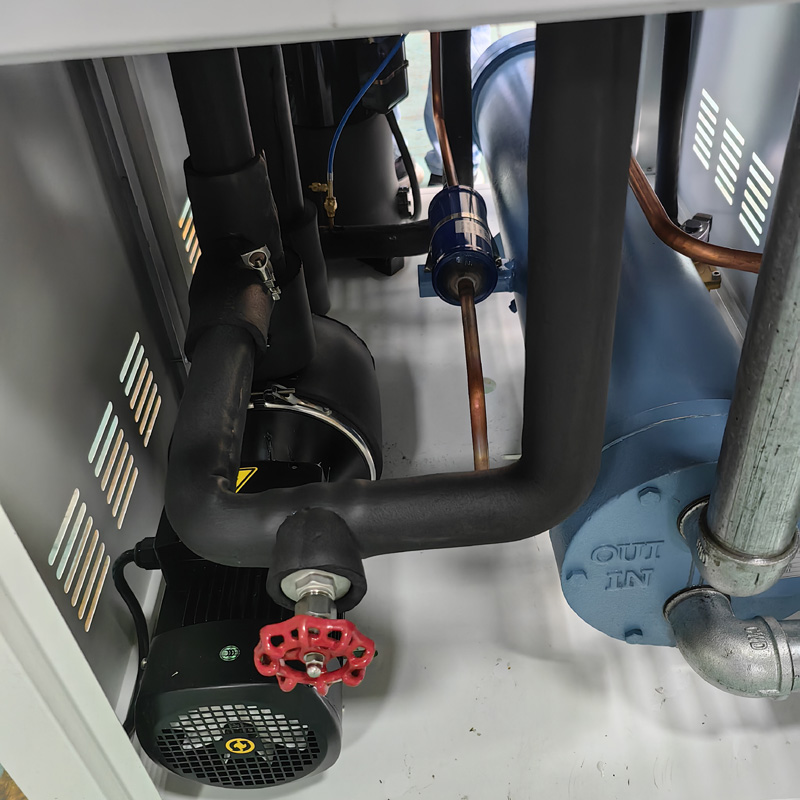

3. Self-processing components: Condenser, Evaporator, SS storage tank and Cabinet self-processing.

4. Copper coil built in SS tank evaporator, easy for cleaning and installation (plat type, shell and tube both available on request).

5. Refrigerant: R22 charged, R407C, R410A, R134A for option.

6. Over-sized evaporator and condenser ensure the chiller unit could running under 45ºC high ambient temperature.

7. Microcomputer control system offering accurate temperature stability within ±1ºC.

8. Multi-protection devices ensure the chiller unit running safety.

9. The innovative evaporator-in-tank configuration ensure a steady water temperature offered, as the evaporator also cools the tank itself, reduces ambient heat again, and increases the efficiency.

10. Energy efficient solutions: our specialists are aware of the rising cost of energy and the pressure to reduce energy consumption, and offer many energy saving products that favor life time costs including variable speed pump & fan packages and energy efficient refrigeration products.

11. Standard equipped Iron pump, stainless steel or high lift pump for option.

12. Water cooled industrial chiller adopted water tank coil / shell and tube condenser, features speed heat dissipation and high cooling efficiency, it is good to be used in high ambient temperature area with abundant water.

Application

Industrial chillers are widely used in Plastic & Rubber industry, Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplating, Printing, Packaging, Ultrasound, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military etc. It can accurately control the temperature to reach the cooling effect you request, increase the product quality and improve the production efficiency.

Product model			HX-20SWD	HX-25SWD	HX-30SWD	HX-40SWD	HX-50SWD
Cooling capacity	-10℃	KW	38	47	57	76	95
	-15℃		32	40	48	64	80
	-20℃		26	32	39	52	65
Power supply			3P 380V 50Hz（60Hz)
Input power (KW)			55.2	69.2	82.5	110	140.5
Control system			Fully automatic
Temperature accuracy			±1°C
Compressor	Type		Hermetic scroll type
	Power (KW)		7.5*2	10.5*2	7.5*3	7.5*4	10.5*4
Refrigerant	Type		R22（R407C/R410A/R404A）
	Control mode		Expansion valve
Evaporator	Type		Shell and tube
	Chilled water flow (m³/h)		9.6	11	14	19	25
Condenser	Type		Shell and tube
	Cooling water flow (m³/h)		11	14	15	22	28
Water tank	Volume (L)		270	310	360	100	100
	Material		SUS304
Pump	Lift (M)		166	200	245	333	415
	Power (KW)		2.2	2.2	3	4	5.5
Safety device			Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection, safety valve, overload protection, under voltage, over voltage etc.
Dimension	L (mm)		1700	1700	1650	2400	2400
	W (mm)		750	750	910	955	950
	H (mm)		1510	1510	1600	1640	1640
Weight	KG		600	700	880	1050	1250
Remark: The above specifications are according to the following design conditions: 1. Cooling capacity calculation standard: chilled water inlet and outlet temperature is designed by 5℃ temperature difference, condensation temperature is calculated by 40℃; Refrigerant R-22 or R-404A + economizer operation mode; 2. When the temperature is lower than 5℃, please add antifreeze to prevent freezing. When the external ambient temperature is lower than 0℃ or the unit is not used for a long time, the water in the machine should be drained to prevent the copper tube from frost heave; 3. Both English and Chinese language interface digital series control system; Programmable PLC system with RS485 communication; 4. The design pressure of chilled water side and cooling water side of the standard model is 1.0mpa; Container pressurized equipment (special ordering machine) applicable design pressure: 1.6mpa cooling water side, 1.0mpa frozen water side; 5. The main power supply: 3 phase 380V 50Hz; Operation power: single-phase 220V 50Hz; When ordering non-standard power supply, please apply in advance.

Q1: Are you a manufacturer?
A1: Yes we are a manufacturer with OEM & ODM services. We have more than 15 years of experience on industrial water chiller and provides professional reliable and economical cooling solution. Our factory located in Dongguan City, Guangdong Province; Welcome to visit us at any time.

Q2: Could you help us to recommend the model for our project?
A2: Yes, we have engineer to check the details and choose the correct model for you. Based on the following:
1) Cooling capacity;
2) If you don’t know, you can offer the flow rate to your machine, temperature in and temperature out from your using part;
3) Environment temperature;
4) Refrigerant type, R22, R407c or other, pls clarify;
5) Voltage;
6) Application industry;
7) Pump flow and pressure requirements;
8) Any other special requirements.

Q3: How to ensure your product with good quality?
A3: All our products with CE certificate and our company Strictly comply with ISO900 quality management system. We use the worldwide famous brand accessories, such as DANFOSS, COPELAND, SANYO, BITZER, HANBELL compressors, Schneider electrical components, DANFOSS/EMERSON refrigeration components.
The units will be fully tested before package and The packing will be carefully checked.

Q4: What’s the warranty?
A4: 1 year warranty for all parts; Whole life labor free!

Q5: What is a water chiller system?
A5: Chiller is a machine that removes heat from a liquid via a vapor-compression or absorption refrigeration cycle. This liquid can then be circulated through a heat exchanger to cool equipment, or another process stream (such as air or process water).

Q6: How does a water chiller work?
A6: The process water is the means by which heat transfers from the process to the chiller.

Q7: How can I place an order?
A7: Send us enquiry via email, call us via Cel number +86 18321801138 directly.
