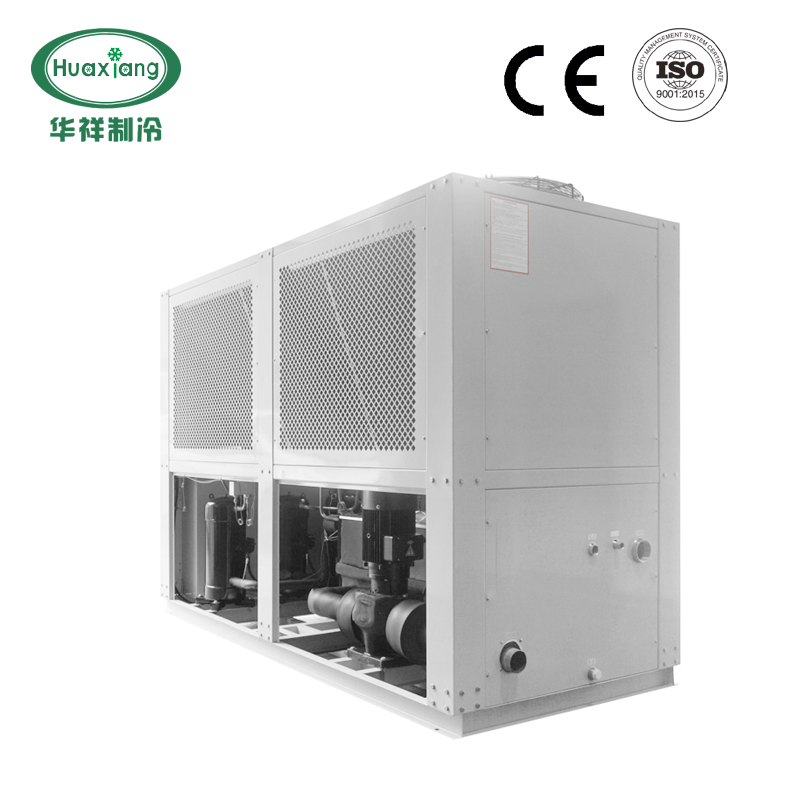

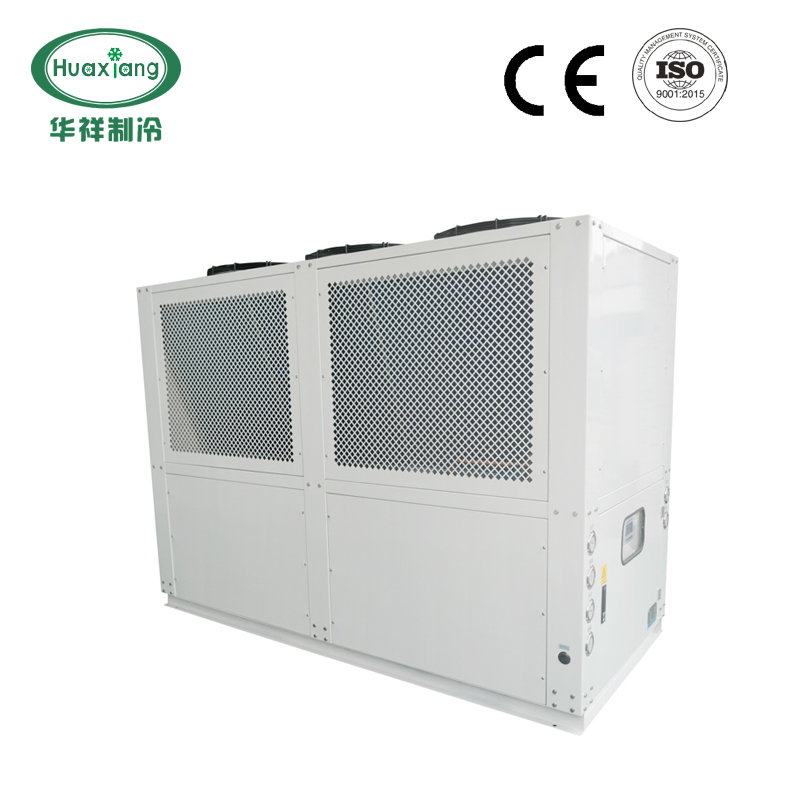

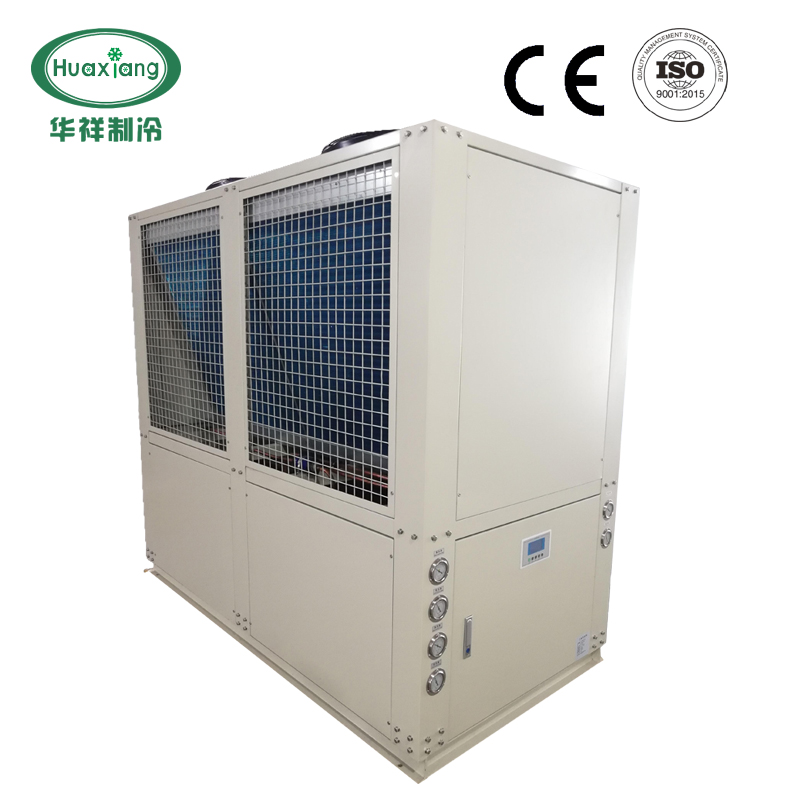

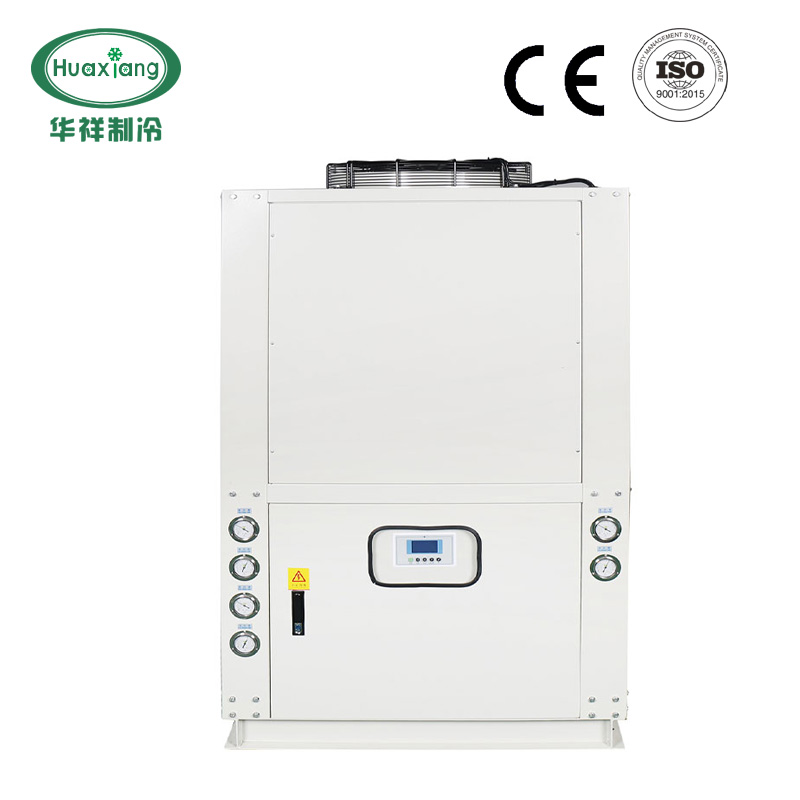

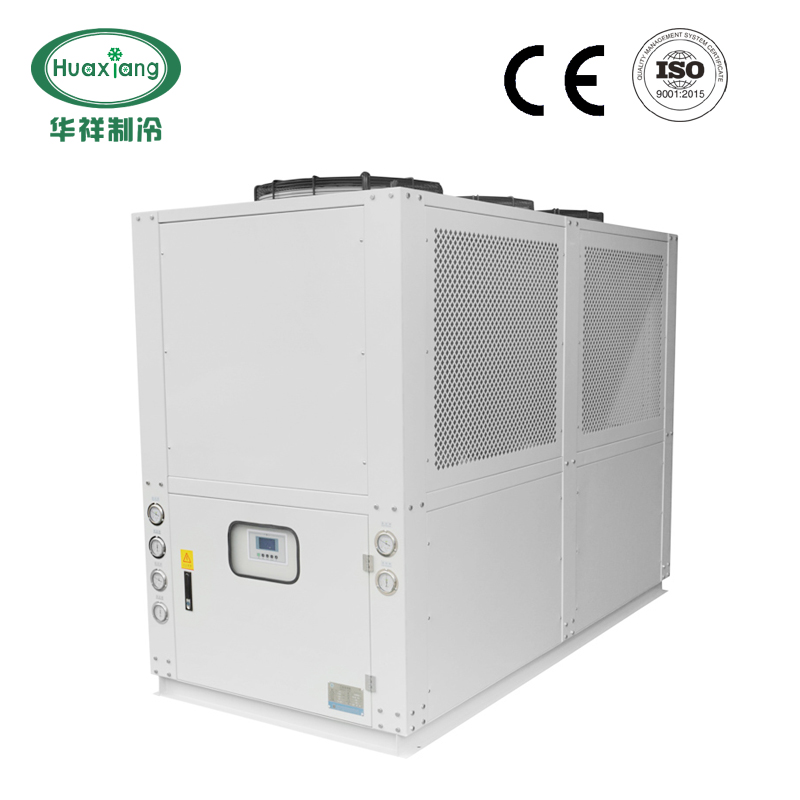

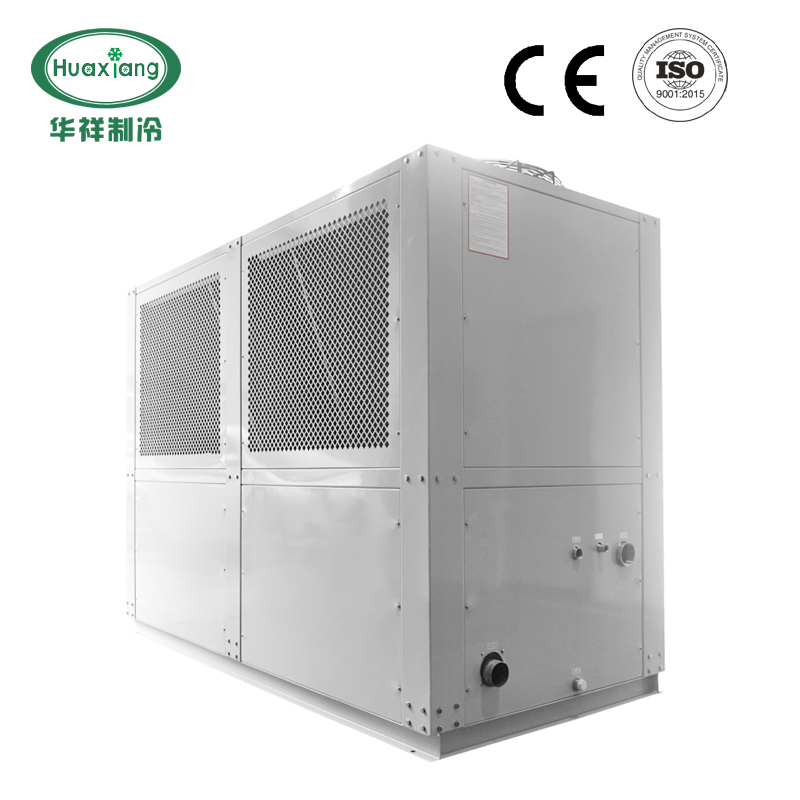

Air Cooled Low-temperature Vortex HX-30FWD

Huaxiang air-cooled industrial chiller adopt of advanced manufacturing production technology, excellent quality, compact structure, nice appearance. Cooling capacity range from 2400Kcarl/h- 12000Kcal/h (1HP-50HP).

Quantity:
Availability:





Inquire Add to Basket

Product Description

Parameter Table

FAQ

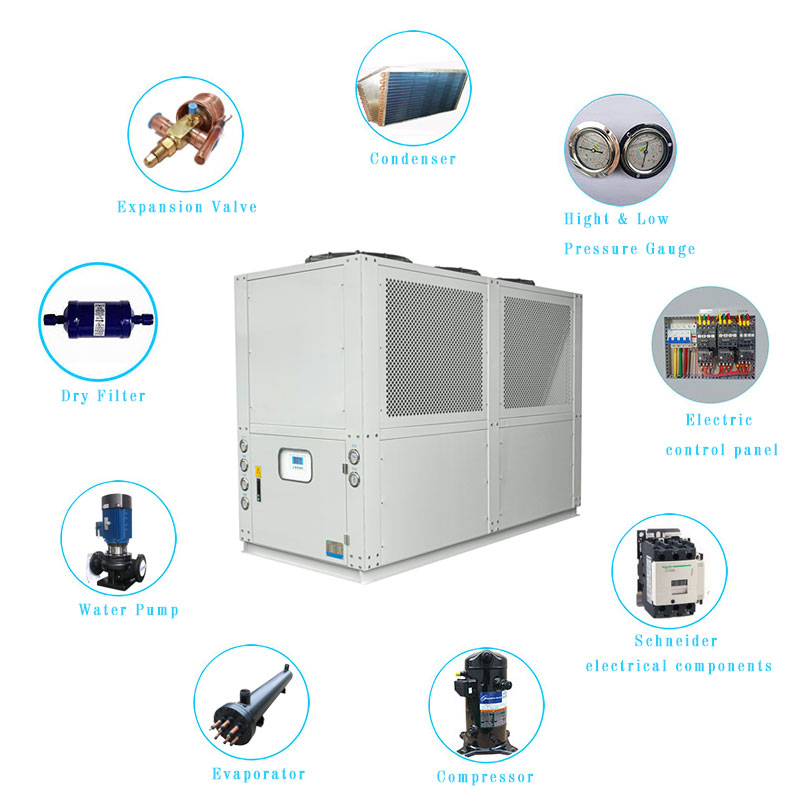

风冷涡旋主图和配件示意图

Air cooled chiller systems typically are easy to install and maintenance, have a lower maintenance cost since they do not require a cooling tower, water pumps, and associated condenser water chemical treatment. In addition, these small industrial chillers are normally used in Metal working, Laser, Electroplating, Printing, Packaging, Ultrasound, Water jet, Vacuum coating, etc.

Product features

1. Adopted world famous brand compressors and high efficiency condenser and evaporator, ensure high cooling efficiency, low energy consumption, low noise and long service life.

2. 100% original brand parts, including compressor, electrical components and refrigeration components. Danfoss/Copeland scroll compressor; Schneider electrical components; Danfoss/Emerson thermal components.

3. Self-processing components: Condenser, Evaporator, SS storage tank and Cabinet self-processing.

4. Copper coil built in SS tank evaporator, easy for cleaning and installation (plat type, shell and tube available on request).

5. Refrigerant: R22 charged, R407C, R410A, R134A for option.

6. Over-sized evaporator and condenser ensure the chiller unit could running under 45ºC high ambient temperature.

7. Microcomputer control system offering accurate temperature stability within ±1ºC. Intelligent PLC microcomputer control, no need manual monitoring, 485 communication interface remote control and centralized management.

8. Multi-protection devices ensure the chiller unit running safety.

9. The innovative evaporator-in-tank configuration ensure a steady water temperature offered, as the evaporator also cools the tank itself, reduces ambient heat again, and increases the efficiency.

10. Energy efficient solutions: our specialists are aware of the rising cost of energy and the pressure to reduce energy consumption, and offer many energy saving products that favor life time costs including variable speed pump & fan packages and energy efficient refrigeration products.

11. Low noise and big volume air blower.

Application

Industrial chillers are widely used in Plastic & Rubber industry, Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplating, Printing, Packaging, Ultrasound, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military etc. It can accurately control the temperature to reach the cooling effect you request, increase the product quality and improve the production efficiency.

Product model			HX-15FWD	HX-20FWD	HX-25FWD	HX-30FWD	HX-40FWD	HX-50FWD
Cooling capacity	-5℃	kw	28	38	47	57	76	95
	-10℃		24	32	40	48	64	80
	-15℃		18	26	32	39	52	65
Power supply			3P 380V 50Hz（60Hz)
Input power (KW)			13.5	18	24	26	36	42
Control system			Fully automatic
Temperature accuracy			±1°C
Compressor	Type		Hermetic scroll type
	Power (KW)		5.5*2	7.5*2	10*2	7.5*3	7.5*4	10*4
Refrigerant	Type		R22（R407C/R410A/R404A）
	Control mode		Expansion valve
Evaporator	Type		Shell and tube
	Chilled water flow (m³/h)		7	9.6	11.8	14	18	24
Condenser	Type		High efficient aluminum finned coil copper tube+Low noise axial fan
	Air volume (m³/h)		15000	22000	25000	31000	42500	55000
Water tank	Volume (L)		210	270	310	360	100	100
	Material		SUS304
Pump	Lift (M)		125	166	200	250	333	416
	Power (KW)		1.1	2.2	2.2	3.0	4.0	5.5
Safety device			Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection, safety valve, overload protection, under voltage, over voltage etc.
Dimension	L (mm)		1600	1900	2140	2400	2200	2400
	W (mm)		890	1000	1000	1120	1600	1600
	H (mm)		1630	1800	1700	1900	2000	2100
Weight	KG		700	820	980	1100	1250	1350
Remark: The above specifications are according to the following design conditions: 1. Chilled water inlet and outlet temperature is designed by 5℃ temperature difference, condensation temperature is calculated by 40℃; Refrigerant R-22 or R-404A + economizer operation mode; 2. When the temperature is lower than 5℃, please add antifreeze to prevent freezing. When the external ambient temperature is lower than 0℃ or the unit is not used for a long time, the water in the machine should be drained to prevent the copper tube from frost heave; 3. Both English and Chinese language interface digital series control system; Programmable PLC system with RS485 communication; 4. The design pressure of chilled water side and cooling water side of the standard model is 1.0mpa; Container pressurized equipment (special ordering machine) applicable design pressure: 1.6mpa cooling water side, 1.0mpa frozen water side; 5. The main power supply: 3 phase 380V 50Hz; Operation power: single-phase 220V 50Hz; When ordering non-standard power supply, please apply in advance.

Q1: Are you a manufacturer?
A1: Yes we are a manufacturer with OEM & ODM services. We have more than 15 years of experience on industrial water chiller and provides professional reliable and economical cooling solution. Our factory located in Dongguan City, Guangdong Province; Welcome to visit us at any time.

Q2: Could you help us to recommend the model for our project?
A2: Yes, we have engineer to check the details and choose the correct model for you. Based on the following:
1) Cooling capacity;
2) If you don’t know, you can offer the flow rate to your machine, temperature in and temperature out from your using part;
3) Environment temperature;
4) Refrigerant type, R22, R407c or other, pls clarify;
5) Voltage;
6) Application industry;
7) Pump flow and pressure requirements;
8) Any other special requirements.

Q3: How to ensure your product with good quality?
A3: All our products with CE certificate and our company Strictly comply with ISO900 quality management system. We use the worldwide famous brand accessories, such as DANFOSS, COPELAND, SANYO, BITZER, HANBELL compressors, Schneider electrical components, DANFOSS/EMERSON refrigeration components.
The units will be fully tested before package and The packing will be carefully checked.

Q4: What’s the warranty?
A4: 1 year warranty for all parts; Whole life labor free!

Q5: What is a water chiller system?
A5: Chiller is a machine that removes heat from a liquid via a vapor-compression or absorption refrigeration cycle. This liquid can then be circulated through a heat exchanger to cool equipment, or another process stream (such as air or process water).

Q6: How does a water chiller work?
A6: The process water is the means by which heat transfers from the process to the chiller.

Q7: How can I place an order?
A7: Send us enquiry via email, call us via Cel number +86 18321801138 directly.
